Marlin 300
Type:
Year:
Manufacturer:
Length:
Passengers:
Beam:
Bridge Clearance:
Hull Draft:
Deadrise:
Dry Weight:
Fuel Capacity:
Engines:
Max HP:
Comfortable Cruise:
Top Speed:

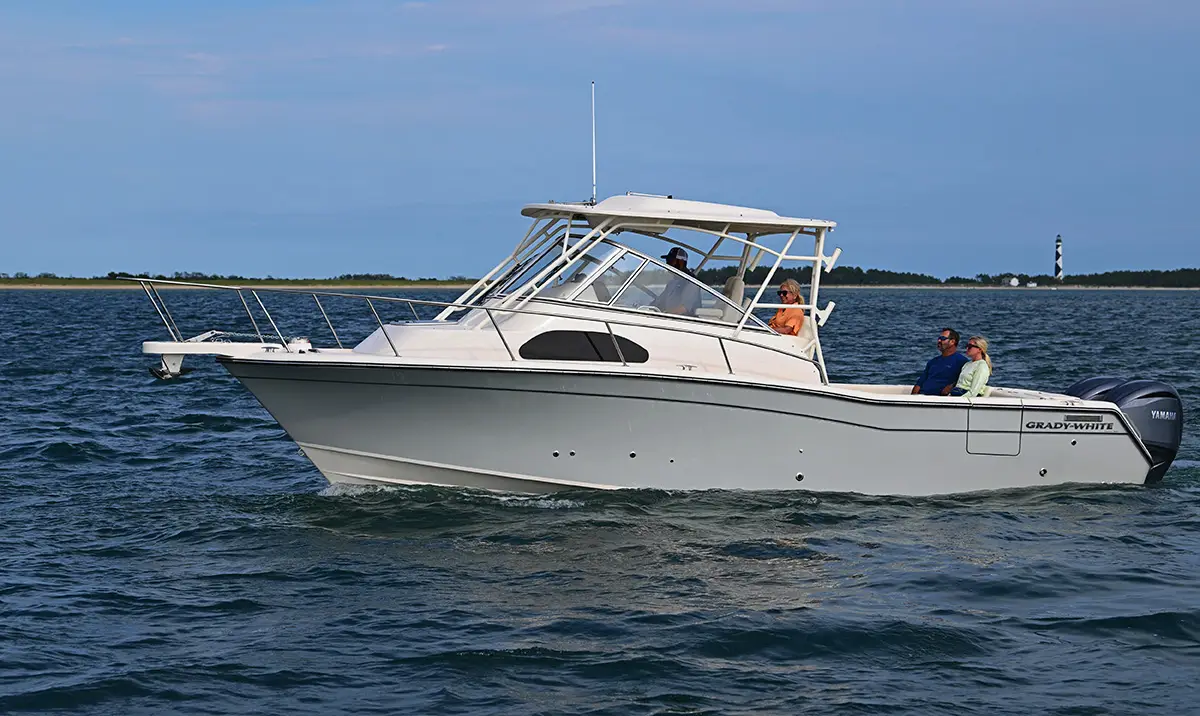

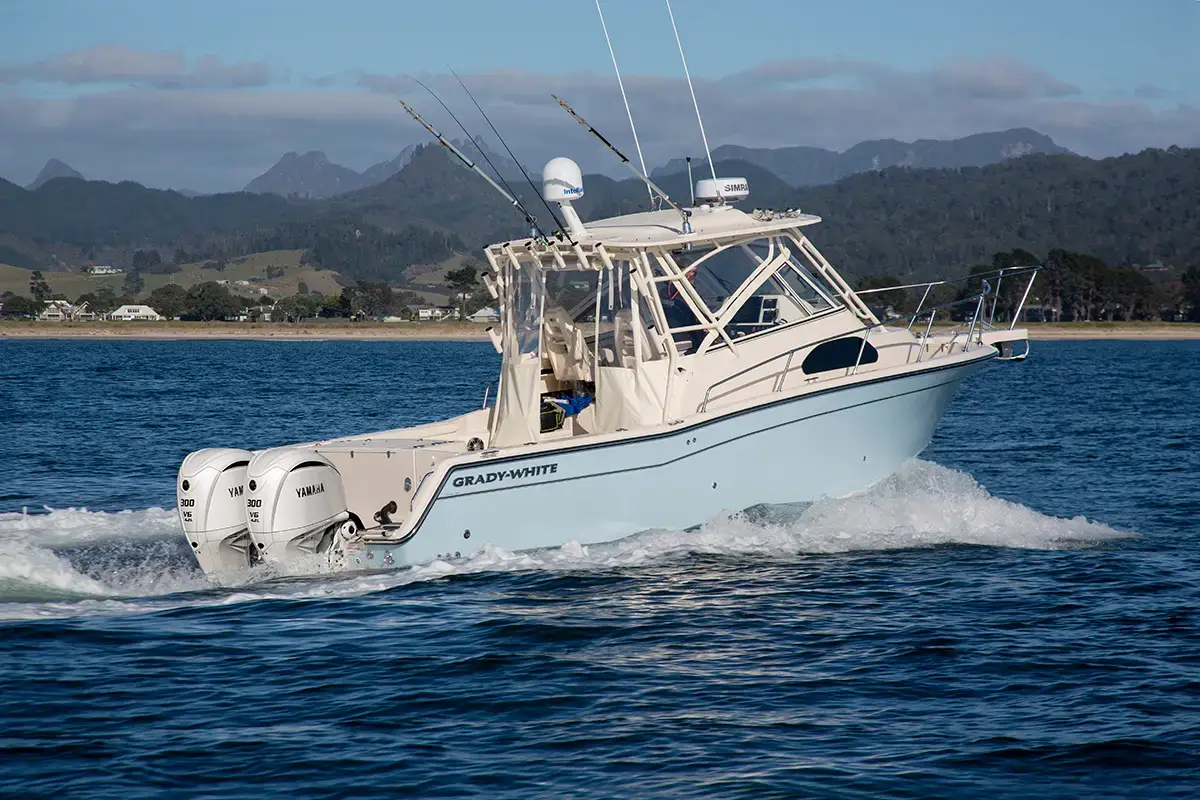

As the first model constructed on the exclusive SeaV²® hull, the Marlin 300 stands as a testament to remarkable performance and authentic offshore saltwater fishing capabilities. Over three decades since its inception, this vessel has undergone continuous refinement, shaped by valuable customer feedback and Grady’s renowned commitment to precision. Featuring highlights such as a tall windshield with ventilated tempered glass, sumptuous seating, and an opulent cabin, the Marlin 300 remains a beloved and legendary 30-foot walkaround fishing boat, enhanced with numerous family-friendly elements.
Standard FEATURES
- 2 automatic bilge pumps (total 2600 GPH) (9842 LPH)
- Basic flotation
- Bow rail – 316 grade stainless steel
- Cockpit toe rails
- Composite stringer system & transom – water impervious
- Nonskid fiberglass liner
- Nonskid recessed walkaround
- Self-bailing cockpit w/cockpit drains (4)
- Stainless steel through-hull fittings
- Accessory outlet – 5V duplex USB port

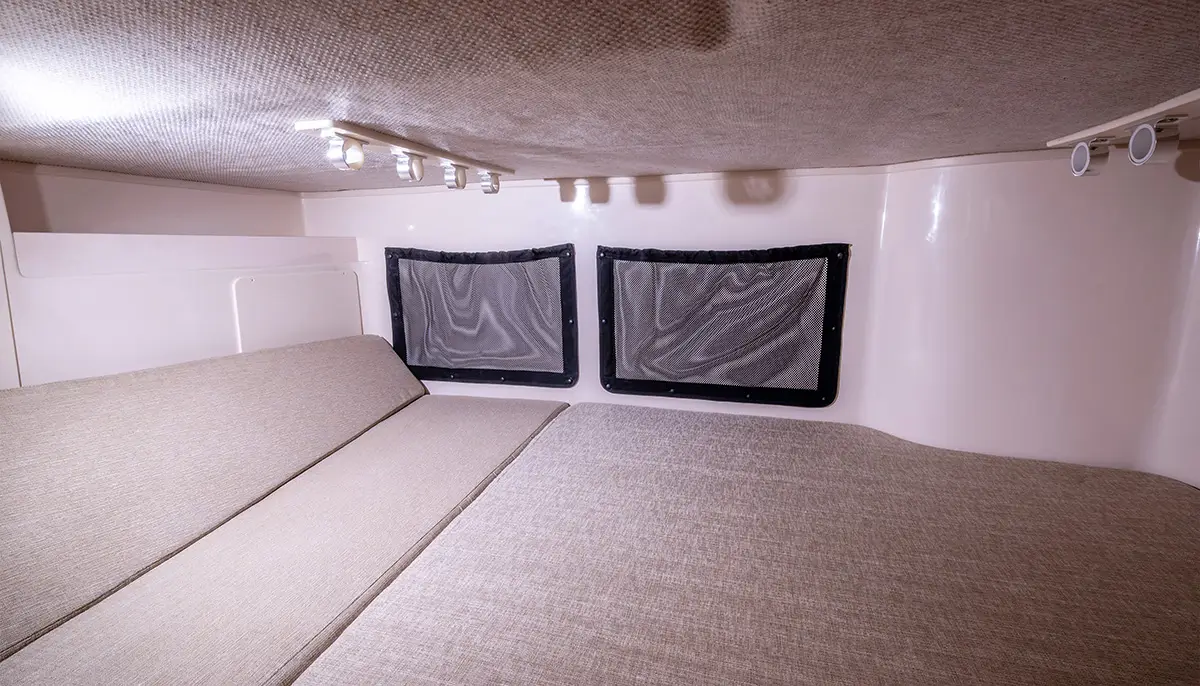

- Berth – aft double berth

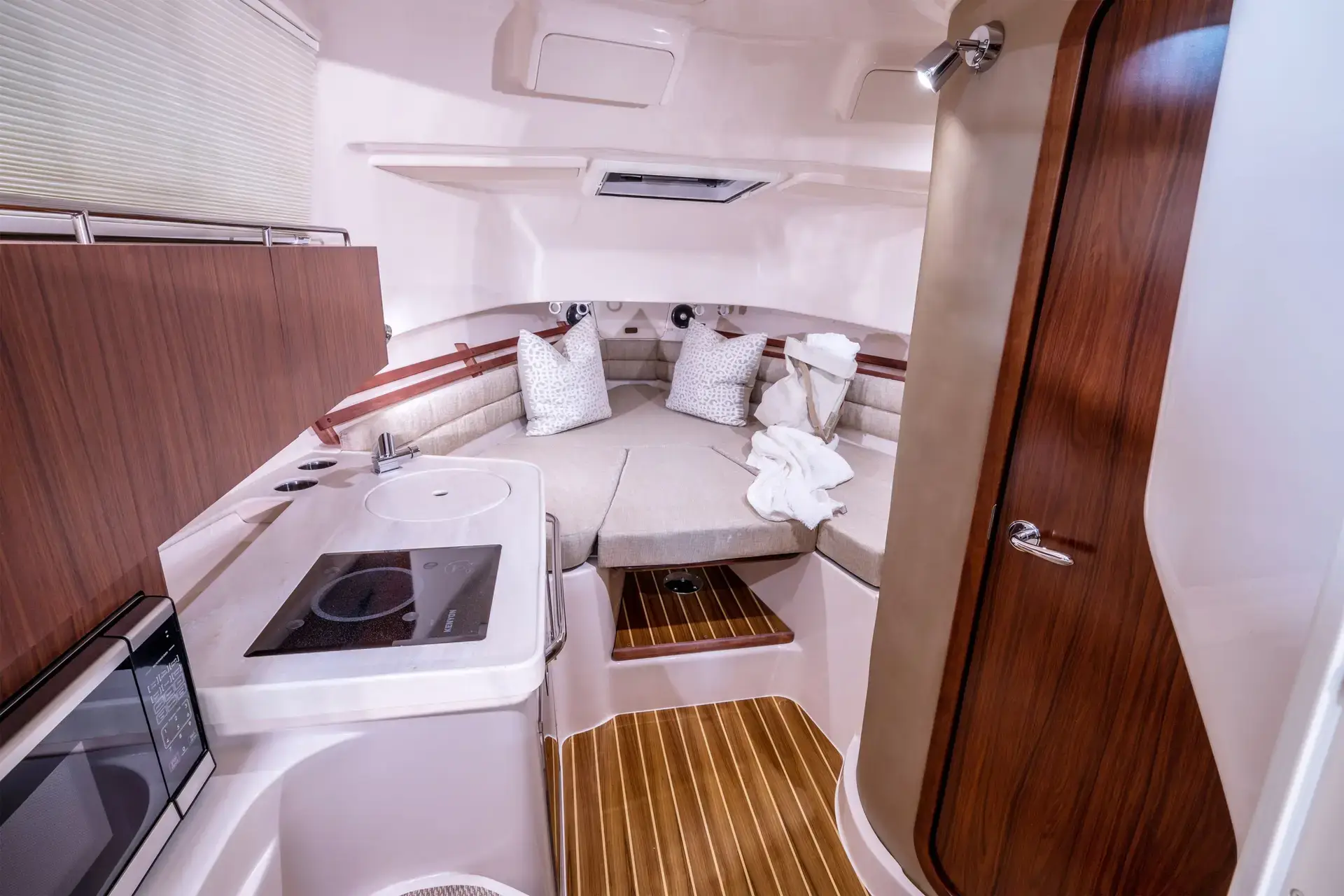

- Berth – forward vee berth
- Carbon monoxide detector

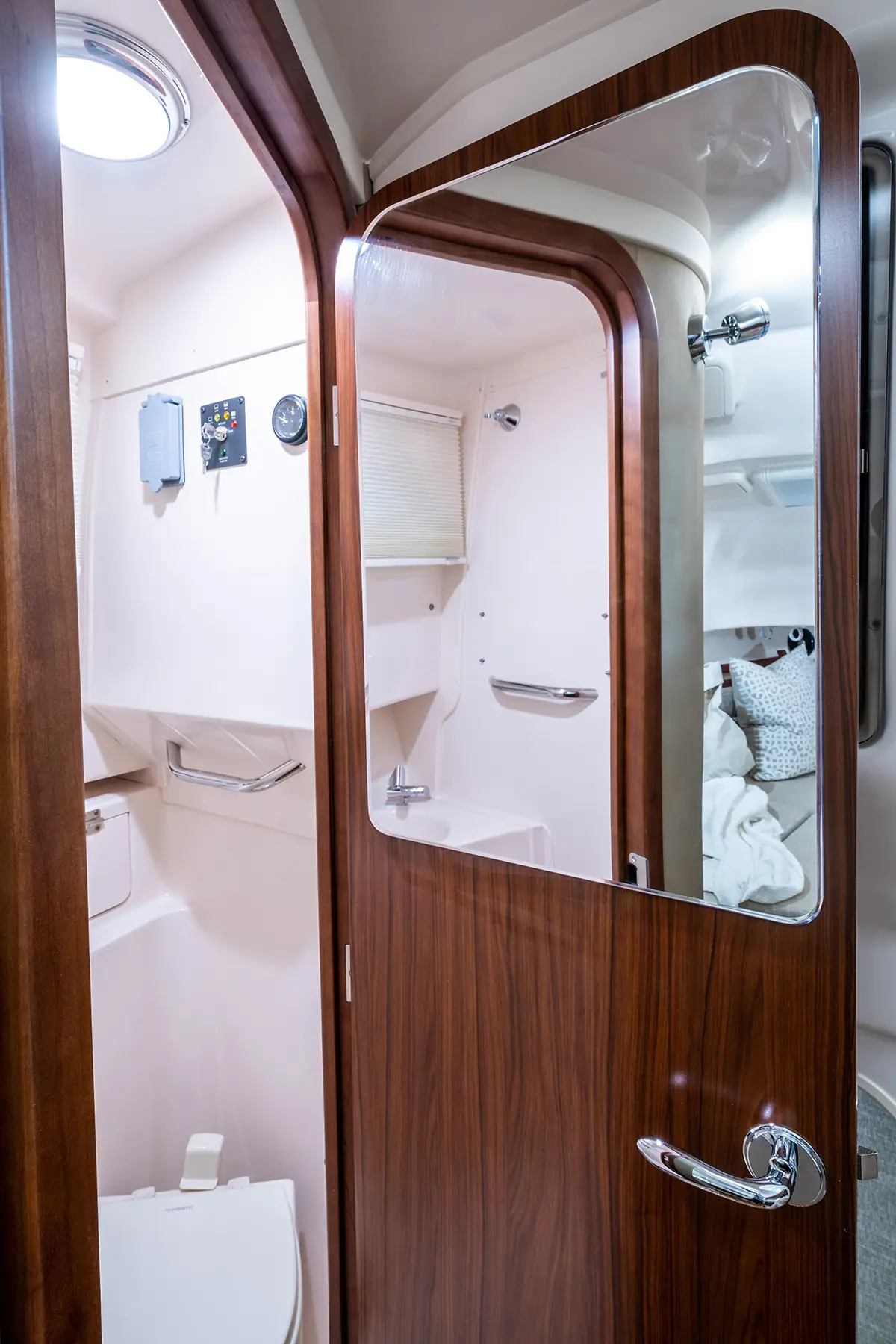

- Door – lockable w/screen & companionway hatch
- Forward hatch – low profile acrylic hatch w/screen & shade

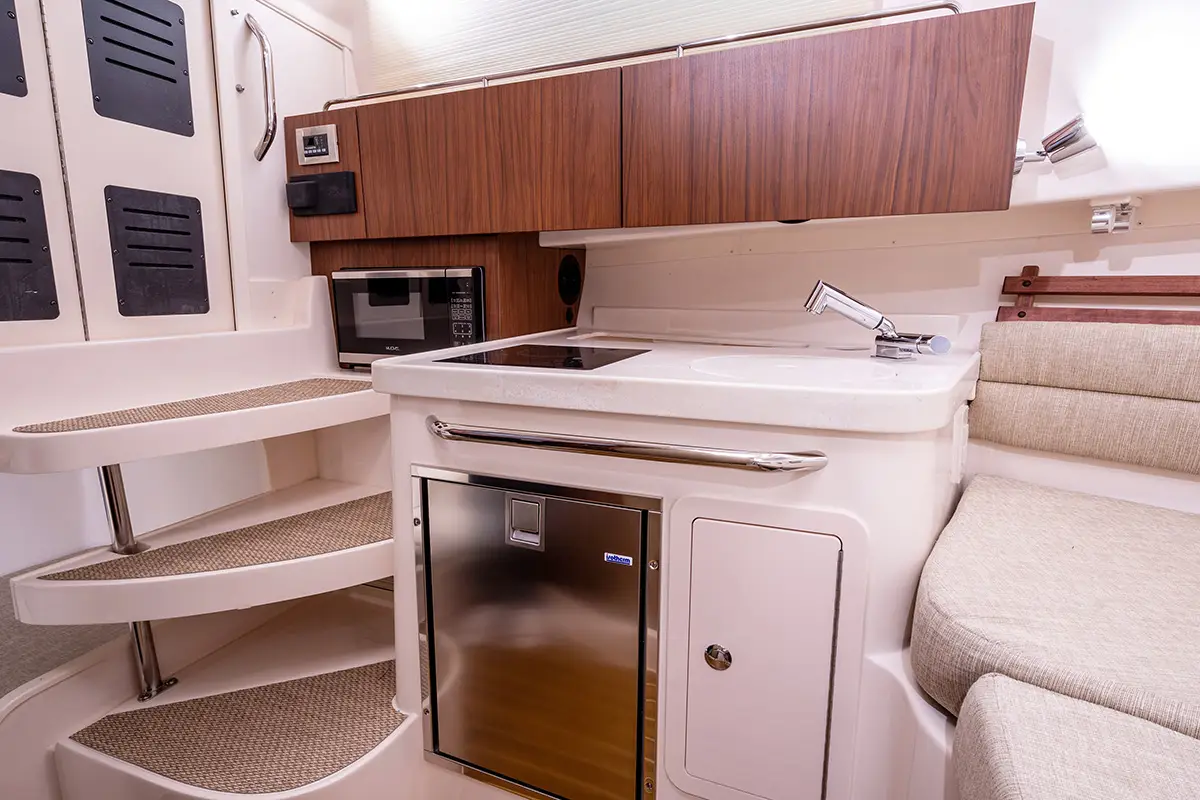

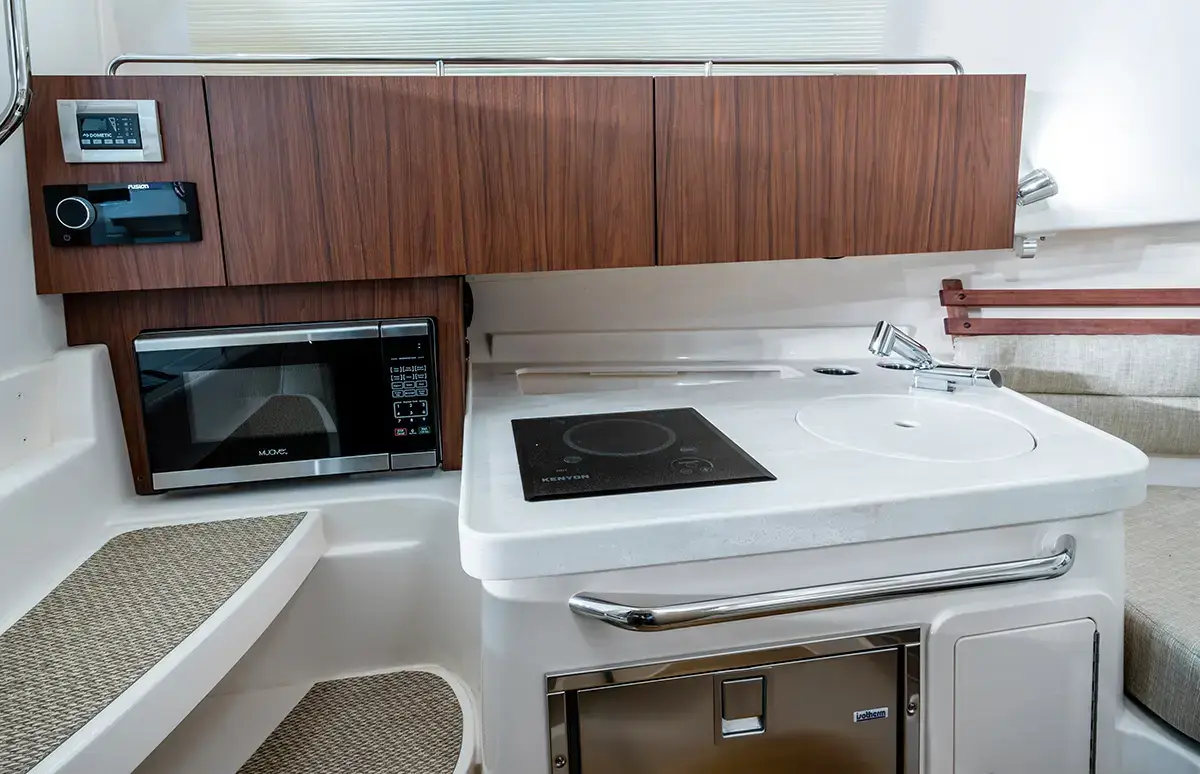

- Galley – port galley w/sink, light & Corian® cutting board

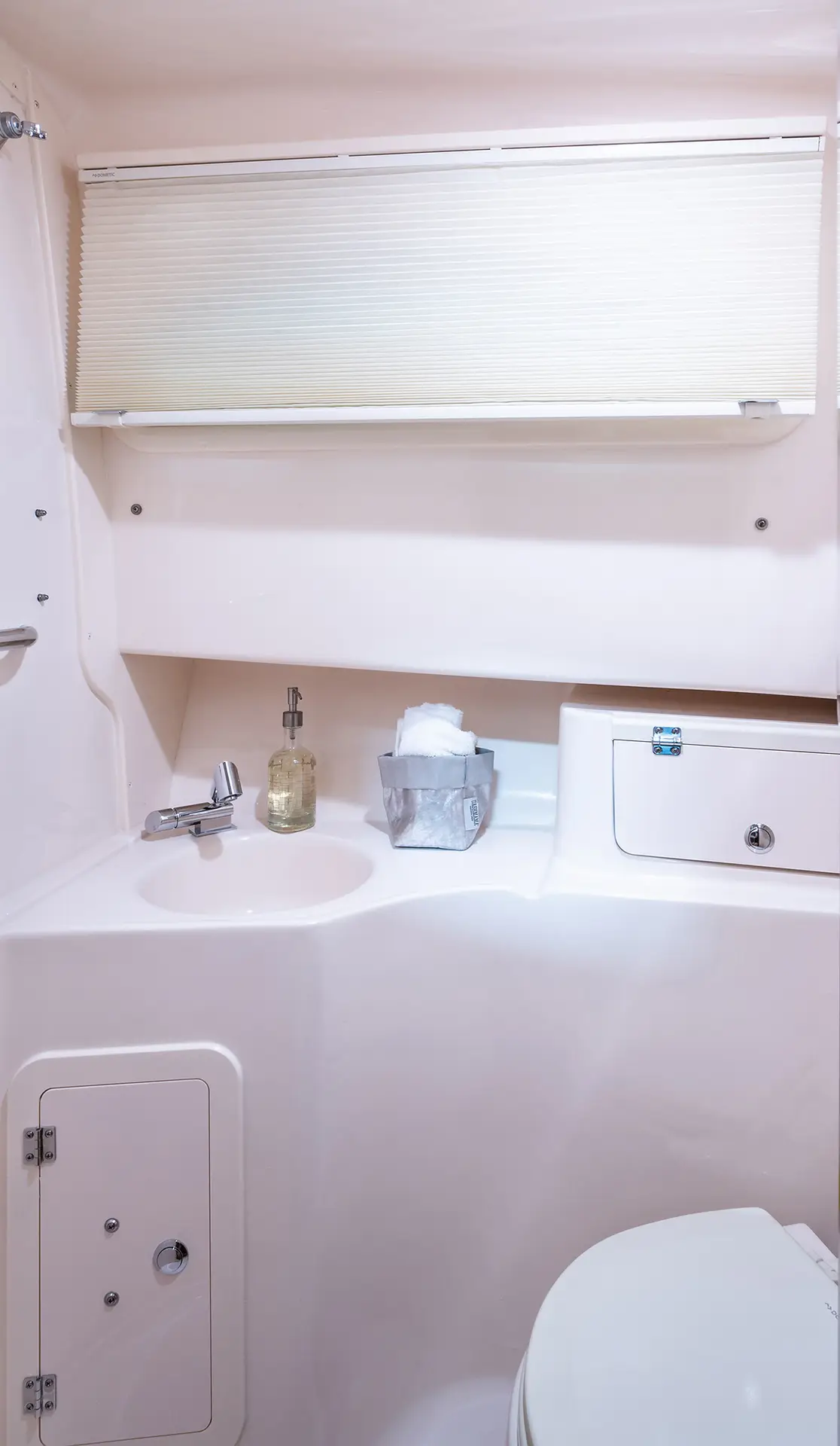

- Head – enclosed head area w/sink, shower, lamp & VacuFlush® marine head w/freshwater supply, 10-gallon (38 l) holding tank, overboard
discharge & deck pump out - Lighting – dome (2)
- Lighting – reading (3)
- Microwave oven
- Mirror

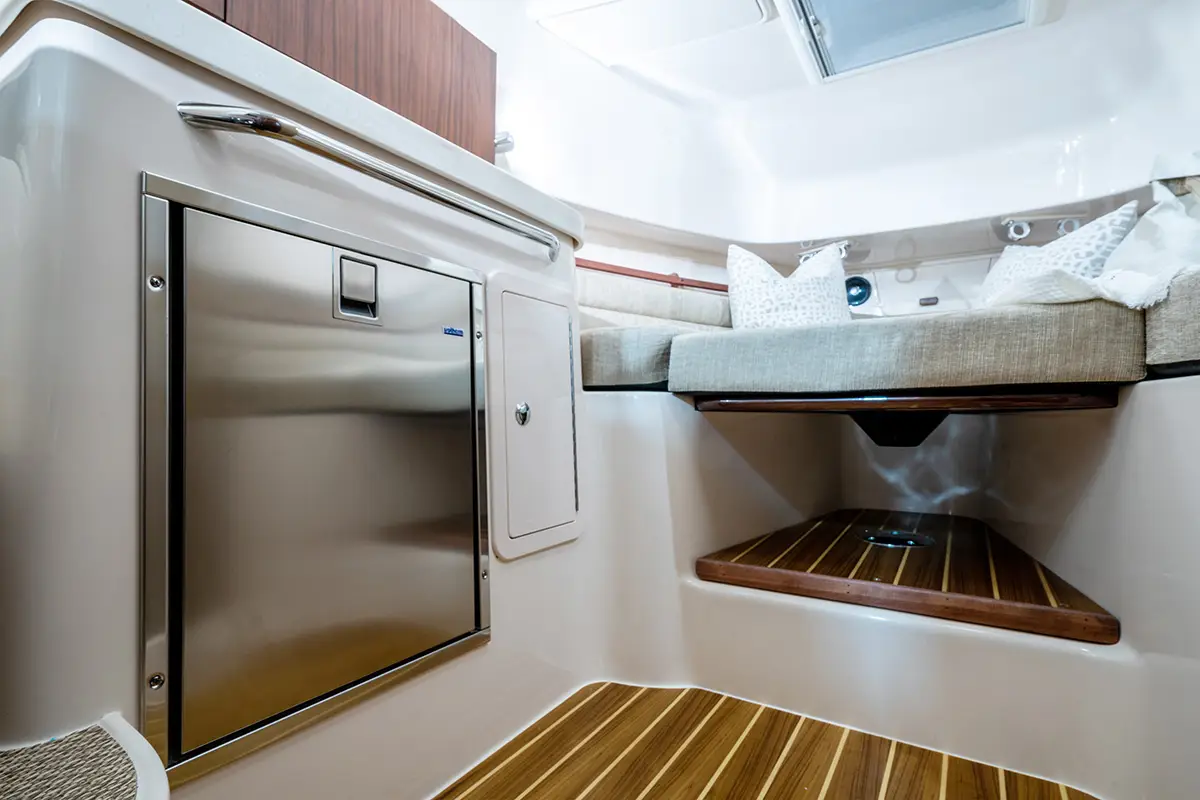

- Refrigerator – stainless steel
- Rod storage – aft berth horizontal (4)
- Rod storage – forward horizontal (6)
- Stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity & remote unit; speakers w/LED lights – helm (2), cabin (2), cockpit (2)
- Storage – galley cabinets & counter
- Storage – under berth compartments
- Storage nets
- Stove – electric glass top
- Table – cherry
- Teak & holly sole
- Water heater – 6-gallon (22.7 l), 120V
- Water tank – 32-gallon (121.1 l) freshwater
- Windows – tinted frameless acrylic w/shade
- 100% hand laid SeaV² hull & deck
- Accessory outlet – 5V duplex USB port
- Accessory outlet – 12V
- Anchor windlass w/remote switches at helm & windlass
- Batteries (4) w/battery select switches (one per engine) & charger system (1)
- Bow pulpit w/roller
- Cleats
- Cockpit bolsters
- Cockpit freshwater shower w/hot & cold mixer
- Cockpit lights – blue LED
- Cockpit side door – port w/boarding ladder
- Companion grab rail
- Deck hardware – 316 grade stainless steel through-bolted
- Dockside power w/galvanic isolator
- Drink holders – stainless steel (9)
- Engine flush system w/hose attachment aft (one per engine)
- Factory engine pre-rigging
- Fighting chair reinforcement
- Fish box – 290-qt. (274.4 l) aft insulated fish box w/light & ob drain
- Flush mount electronics area
- Footrests – helm & companion (fold down)
- Freshwater level indicator
- Fuel capacity – 282 gallons (141-gallon tank, 141-gallon tank) (1067 l)

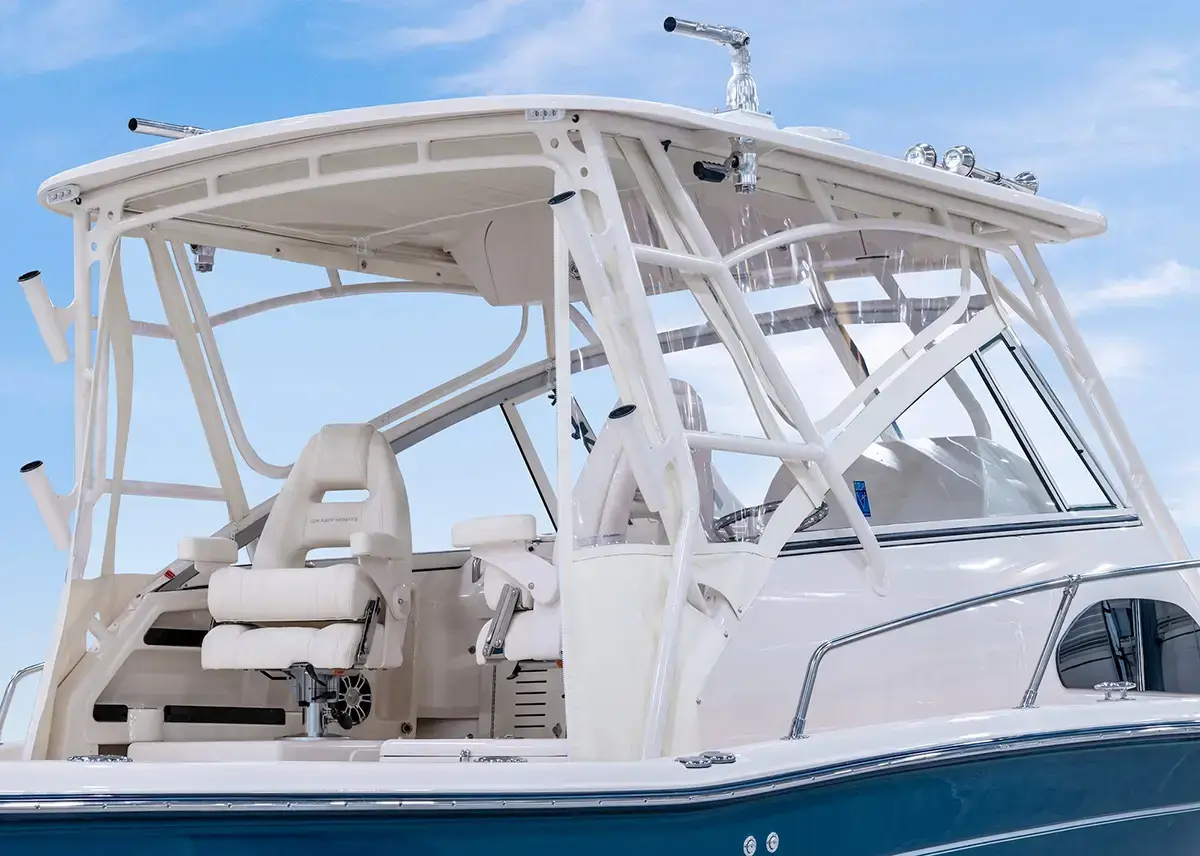

- Hardtop w/painted aluminum frame, radio box, storage nets, spreader lights, side mounted rod holders (4), outrigger plates & drop, front & side
curtains (black or ivory) - Hydraulic trim tabs w/indicator & retractor
- Integrated outboard mounting system w/swim platform & ladder
- International lighting

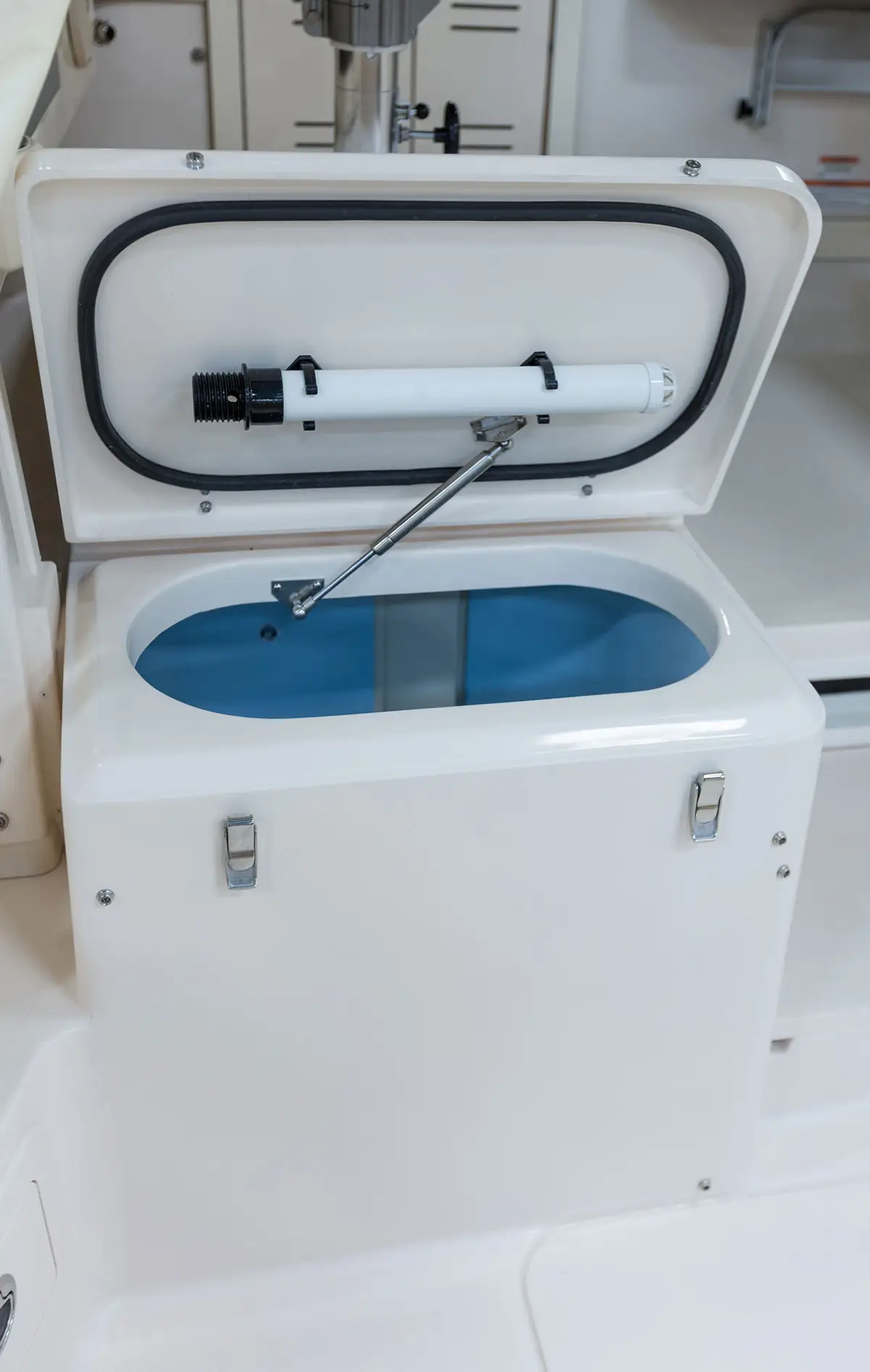

- Livewell – 32-gallon (121.1 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)

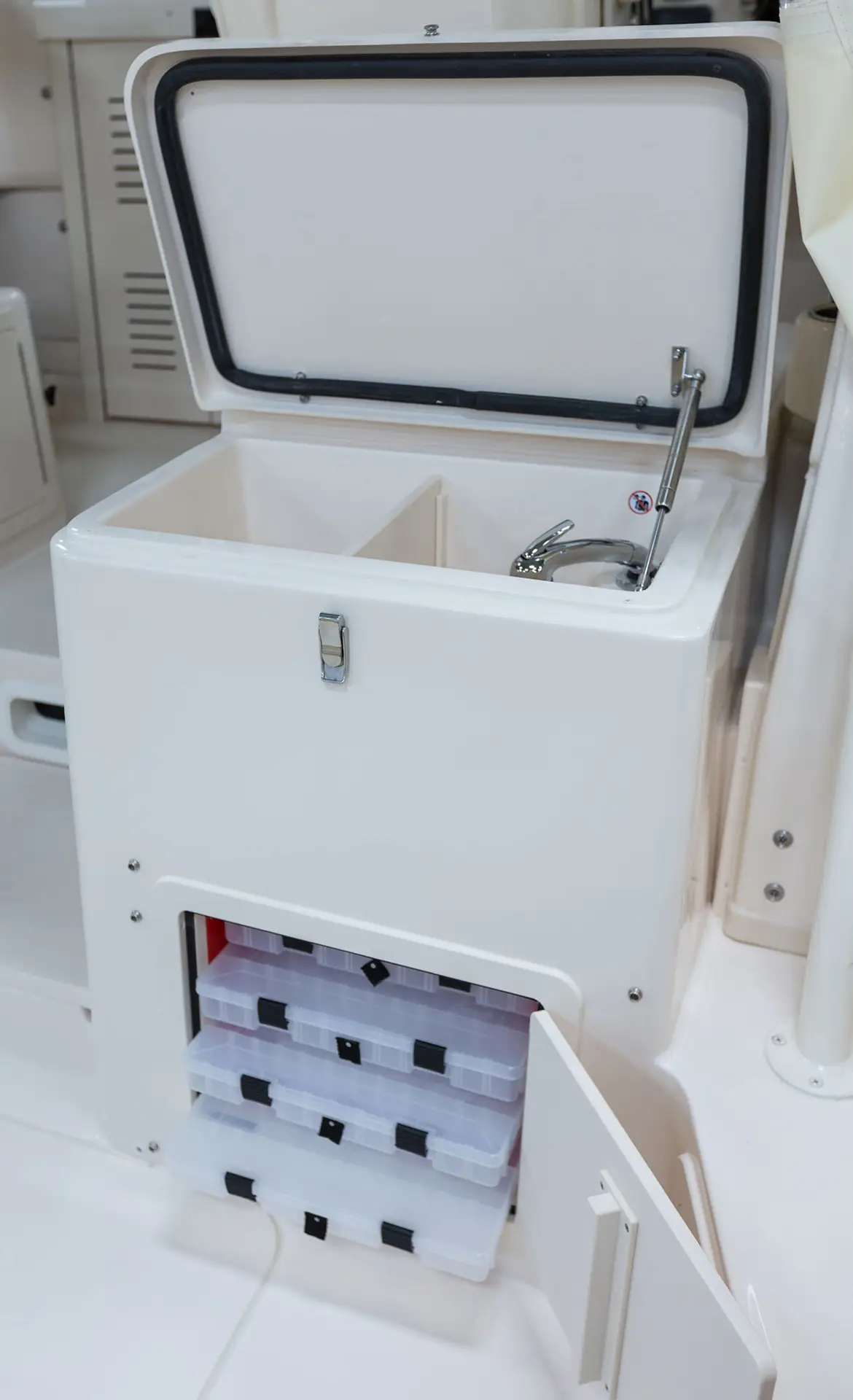

- Rigging station – freshwater sink, insulated bait box w/ob drain & lockable drawers
- Rod holders – cockpit (4)
- Rod storage racks – horizontal (3)
- Rubrail – high density PVC w/stainless steel insert
- Seating – Command Elite helm & companion chairs (2) horizontally & vertically adjustable w/deluxe cushioning & flip-up bolster

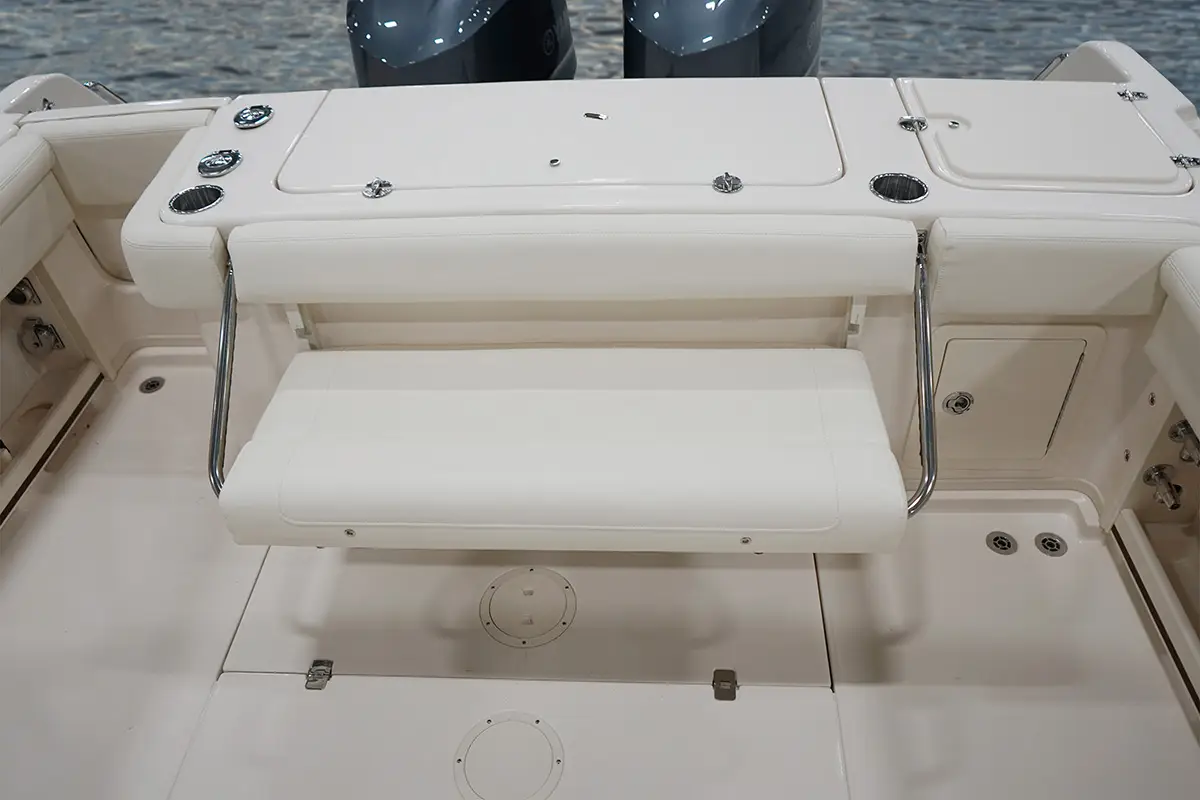

- Seating – foldaway aft bench seat w/cushion
- Seating – foredeck cushions
- Seating – port livewell cushion
- Seating – starboard rigging station cushion

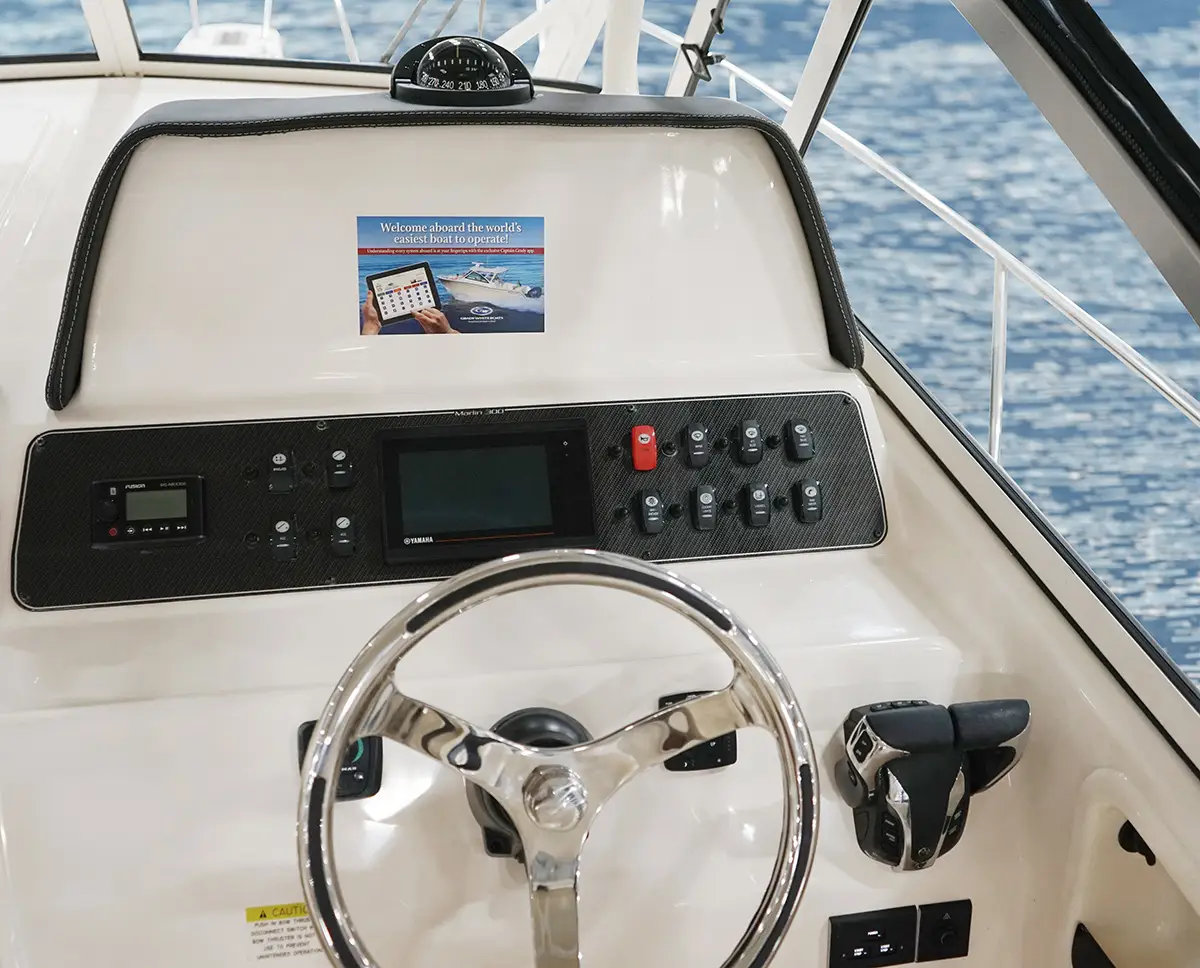

- Steering – Helm Master® EX w/Integrated Digital Electric
- Steering (does not include joystick)
- Steering wheel – 316 grade stainless steel w/knob
- Stern eyes – 316 grade stainless steel
- Storage – aft deck lift out box
- Storage – forward anchor locker w/rode storage
- Storage – lockable storage under helm & companion seats
- Storage – under step compartment
- Transducer mounting flats
- Transom door – fiberglass
- Washdown – freshwater
- Washdown – pressurized raw water w/hose
- Water tank – 32-gallon (121.1 l)

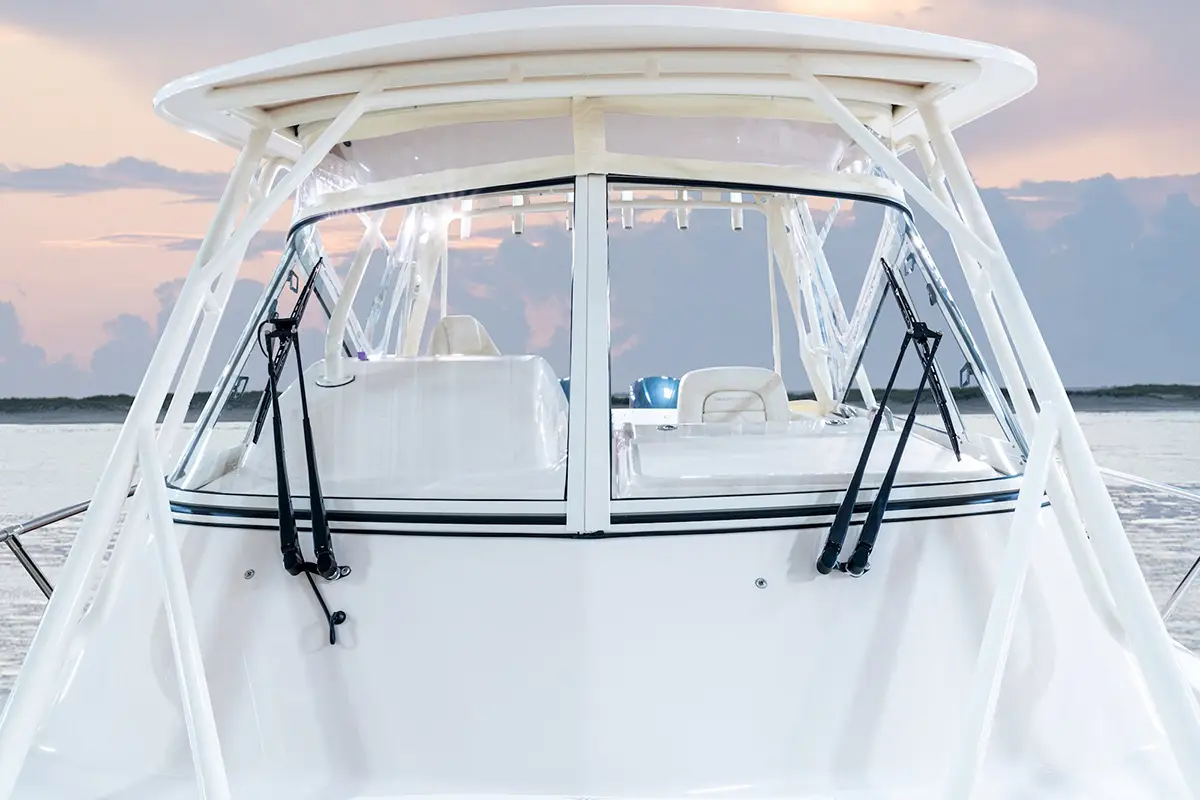

- Windshield – tempered glass w/side vents
- Windshield wipers w/starboard washer
- Accessory outlet – 5V duplex USB port (2)
- Accessory outlet – 12V (1)
- Carbon monoxide detector
- Composite cherry & holly soles
- Portside console w/sink, cedar lined storage closet, indirect lighting, extended storage area, fold down seat w/cushion & VacuFlush® head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out
- Starboard console w/cushioned berth, bulk storage & indirect lighting
Optional Features
- Air conditioning – 8000 BTU in cabin
- Bow thruster
- CE certification package (European Conformity)
- Generator – 5kW diesel, 12-gallon (45.4 l) fuel capacity
- Hardtop color – underside of fiberglass hardtop (requires matching gelcoat hull color option)
- Hull color – Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat
- International AC electrical conversion – 220V (50Hz)
- Lighting – underwater blue LED (3)
- Outrigger kit – 18-ft. (5.5 m) crank hardtop mounted stainless steel outriggers w/carbon fiber poles
- Painted hardtop top mounted rod holders (6)
- Rod storage – folding cabin rack (4)
- Seating – companion bench seat (replaces Command Elite companion chair)
- Steering – Helm Master® EX w/Full Maneuverability
- TV – 19″ LED flat screen w/HDMI inlet
Performance
- Top Speed: 49.5 MPH @ 5800 RPM
- Optimum Cruise: 29.7 MPH @ 3800 RPM
- GPH at Optimum Cruise: 21.5
- MPG at Optimum Cruise: 1.38
- Engine Size: 4.2L

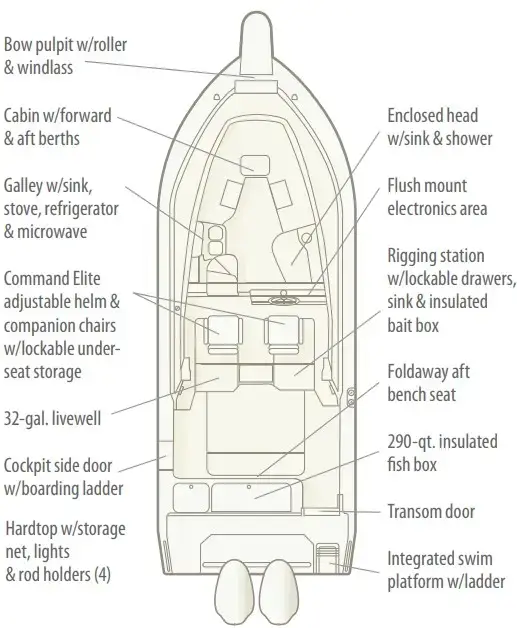

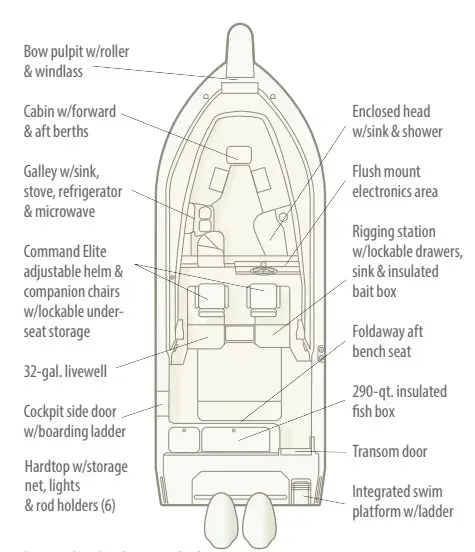

Overhead View
